MidiSerial

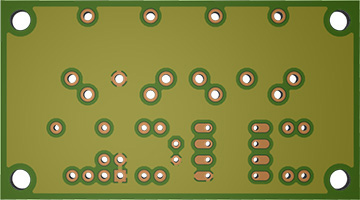

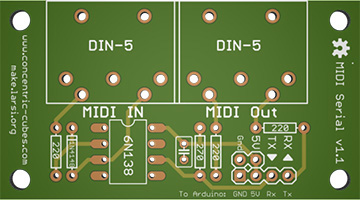

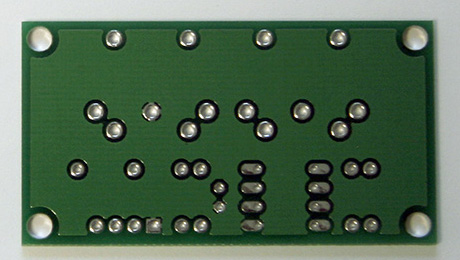

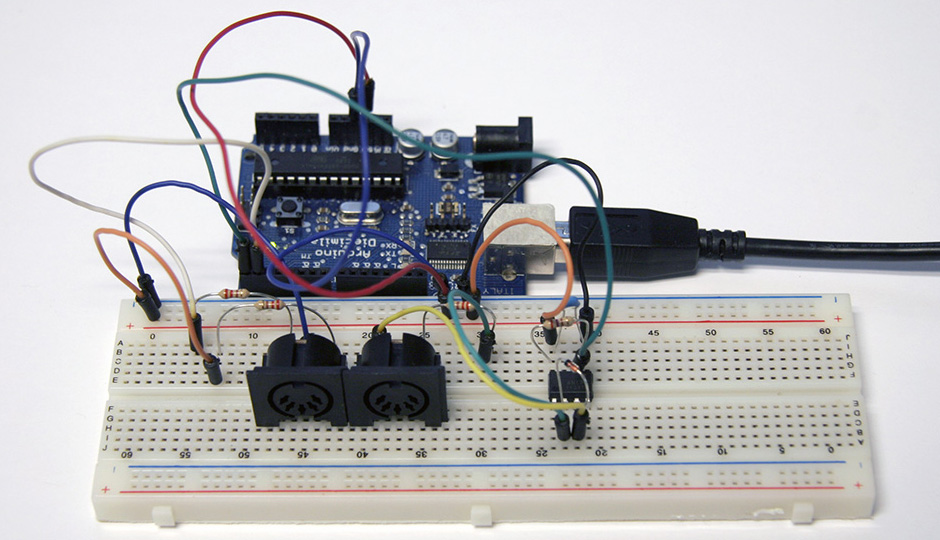

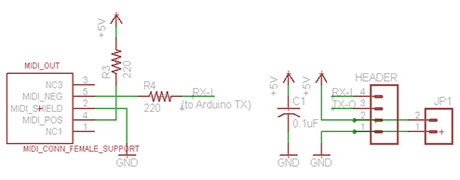

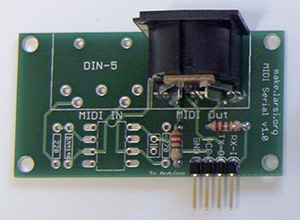

MIDI OUT
Parts List
| 2 | Resistor | 220Ω ¼W - redredbrowngold |
| 1 | MIDI Connector | Female Right Angle |
| 1 | PCB |

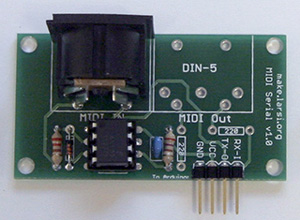

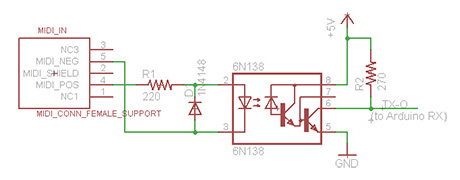

MIDI IN
Parts List
| 1 | Optocoupler | 6N138 |
| 1 | Diode | 1N4148 |
| 1 | Resistor | 220Ω ¼W - redredbrowngold |
| 1 | Resistor | 270Ω ¼W - redpurplebrowngold |
| 1 | Capacitor | 0.1µF (100nF) |
| 1 | MIDI Connector | Female Right Angle |
| 1 | PCB |

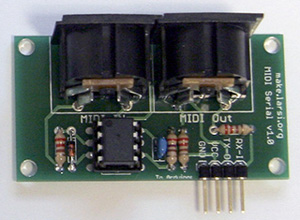

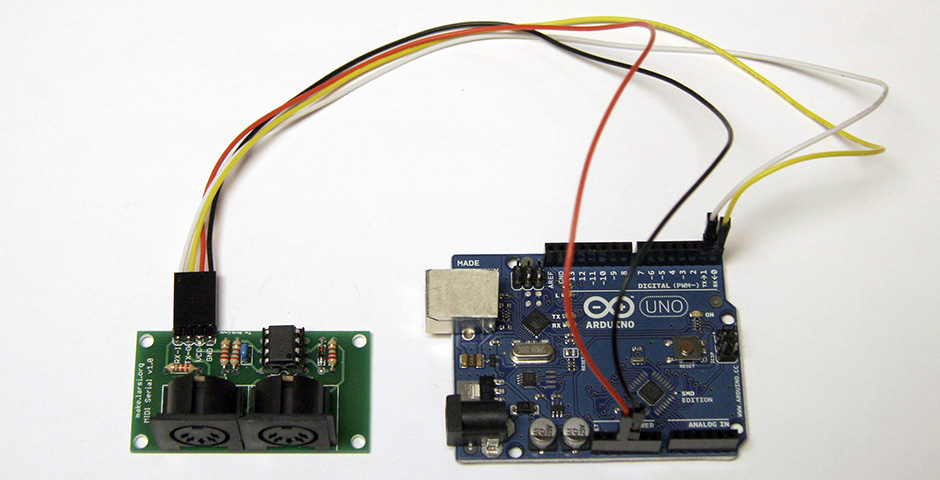

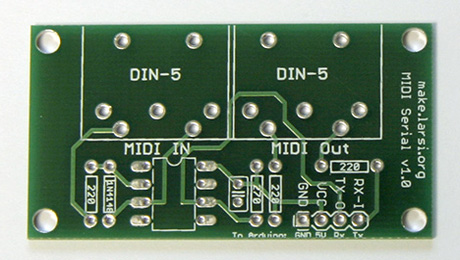

MIDI IN & OUT
Parts List
| 1 | Optocoupler | 6N138 |
| 1 | Diode | 1N4148 |
| 3 | Resistor | 220Ω ¼W - redredbrowngold |
| 1 | Resistor | 270Ω ¼W - redpurplebrowngold |
| 1 | Capacitor | 0.1µF (100nF) |
| 2 | MIDI Connector | Female Right Angle |
| 1 | PCB |
